Conveyor Components

Conveyor components are the essential mechanical parts that support, guide, and maintain the movement of a conveyor system.

These elements work together to ensure smooth material flow, reduced wear, and optimal operational efficiency across industrial environments. Engineered for durability and consistent performance, quality conveyor components help minimize downtime and extend the lifespan of your equipment. Whether used in heavy-duty mining, aggregate handling, or general material-processing applications, these parts are critical for reliable system performance and long-term productivity.

Skirting Systems
Fasteners
Ceramic Pulley Lagging
Impact Bed
Belt Cleaner
Pre-Cleaner
Belt Plow
Belt Trainer

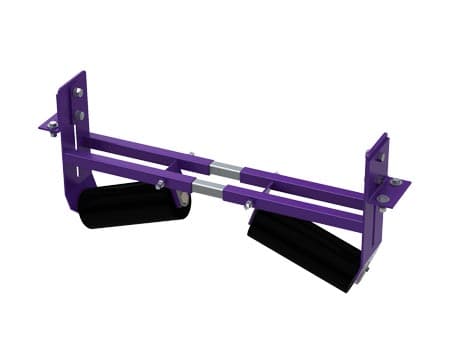

Belt Positioner

Conveyor Components

Skirting Systems

Mechanical skirting systems provide adjustable, secure sealing along conveyor edges, reducing spillage, dust, and wear while allowing fast, simple maintenance.

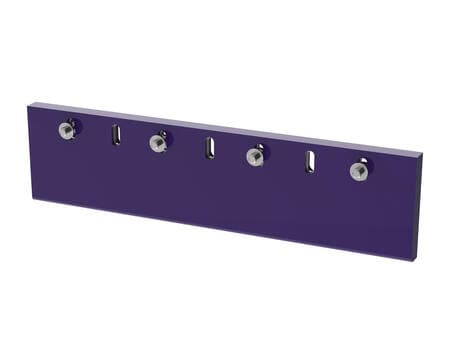

Canoe Liner

Material: Steel-reinforced polyurethane
Liner Heights: 8", 10", 12" (200, 250, 300 mm)
Thicknesses: 1", 2", 3" (25, 50, 75 mm)
Length: 48" (1200 mm) sections
Chamfer Options: Flat or 35-degree

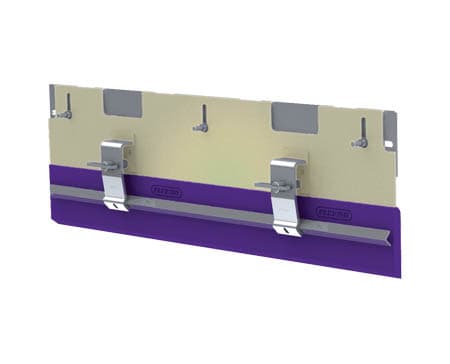

Skirt Wear Liner Kit

Configurations: Straight or Tangent
Wear Liner Options: 1/4" (6 mm) AR400 or 1" (25 mm) Canoe Liner
Includes: Upper mounting plate, wear liner, RMC1 Skirt Clamps
Retrofits: To existing chutes and load zones

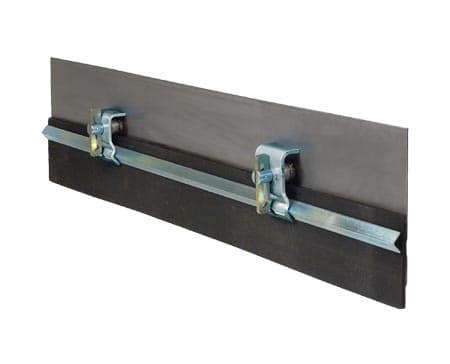

RMC1 Skirt Clamp

Module Size: 4' (1200 mm)
Skirt Rubber Thickness: 5/16" to 3/4" (8 to 19 mm)
Overall Height: Standard: 7" (180 mm); LS: 4.5" (115 mm)
Pin to Clamp Bar: Standard: 4" (100 mm); LS: 2.5" (65 mm)

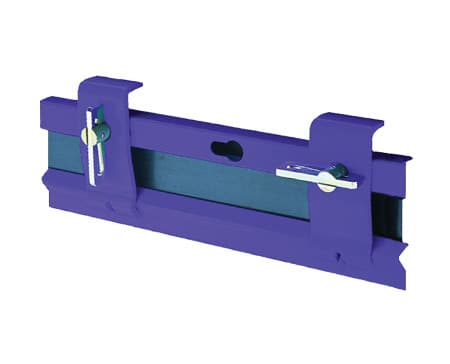

Flex-Lok™ Skirt Clamp

Module Size: 6' (1800 mm)
Skirt Rubber Thickness: 5/16" to 1" (8 to 25 mm)
Overall Height: Standard: 7" (180 mm); Mini: 4.5" (115 mm)
Pin to Clamp Bar: Standard: 4" (100 mm); Mini: 2.5" (65 mm)
Options: Available in stainless steel

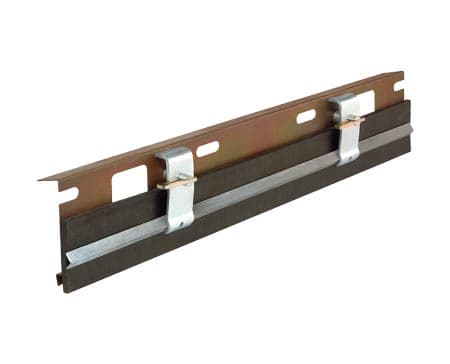

Flex-Seal™ Skirt System

Module Size: 4' (1200 mm)
Skirt Rubber Width: 6" (150 mm)
Skirt Rubber Thickness: 5/16" to 3/4" (8 to 19 mm)
Application: Mineline® endorsed for heavy-tonnage applications

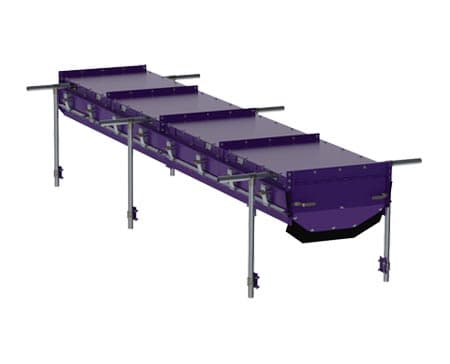

Enclosed Skirt Systems

Rubber Sealing Options: Vertical or Tangential

Universal support legs for easy installation
Externally adjustable and replaceable liners
Sealed rear panel with lift access for washout
Can be custom-engineered to fit specific requirements

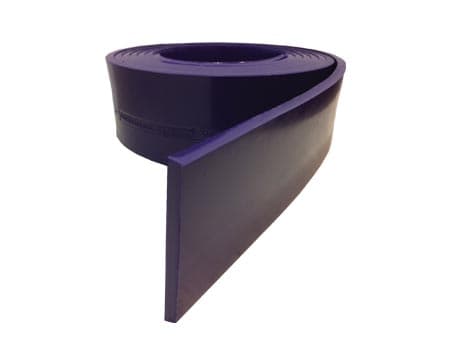

Standard Polyurethane Skirting

Material: Soft durometer (65A) urethane
Temperature Rating: -20°F to 180°F (-30°C to 82°C)
Roll Sizes: 25' (7.6 M) and 50' (15.2 M)
Chamfer: 35-degree
Heights: 4", 6", 8", 10", 12" (100–300 mm)

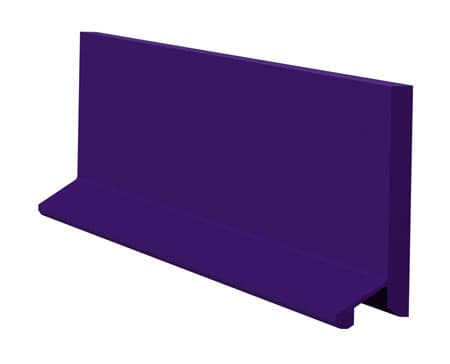

Dual Seal Polyurethane Skirting

Material: Soft durometer (65A) urethane
Temperature Rating: -20°F to 180°F (-30°C to 82°C)
Roll Sizes: 25' (7.6 M) and 50' (15.2 M)
Chamfer: 35-degree
Secondary Seal: Provides floating contact area behind main slab

Conveyor Components

Fasteners

It's quick and provides adequate strength. Allows easy maintenance or replacement, it also supports high load operations and minimize downtime.

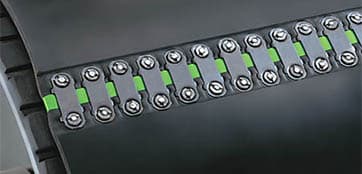

Flexco® Bolt Solid Plate Fastening System

Belt Thickness: 3/16" – 1-3/16" (5–30 mm)
PIW Max: 150–620 PIW (30–100 kN/m)
Min. Pulley Diameter: 12"–48" (300–1220 mm)

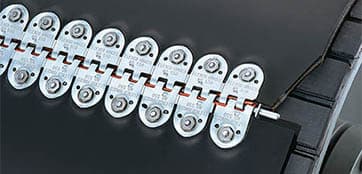

Flexco® Bolt Hinged Fastening System

Belt Thickness: 1/4" – 5/8" (6–16 mm)
PIW Max: 190–300 PIW (33–52 kN/m)
Min. Pulley Diameter: 6"–9" (152–230 mm)

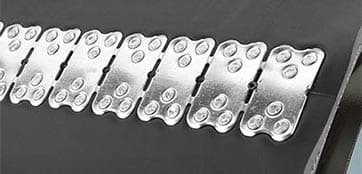

Flexco® Rivet Solid Plate Fastening System

Belt Thickness: 7/32" – 15/16" (6–24 mm)
PIW Max: 400–800 PIW (70–140 kN/m)
Min. Pulley Diameter: 14"–36" (350–900 mm)

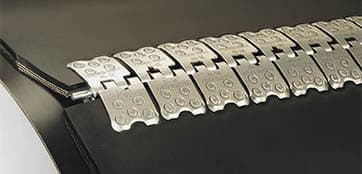

Flexco® Rivet Hinged Fastening System

Belt Thickness: 1/8" – 1" (3–25.5 mm)
PIW Max: 330–2000 PIW (60–350 kN/m)
Min. Pulley Diameter: 5"–42" (127–1050 mm)

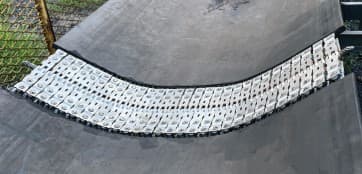

FXC™ Steel Cord Belt Fastening System

Belt Rating: ST500 to ST2500 (428–2140 PIW)
kN/m Max: 60–350 kN/m
Min. Pulley Diameter: ST500 to ST2500

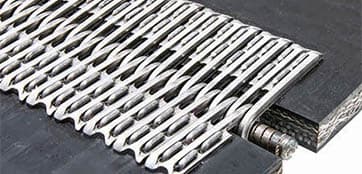

Flexco® XP™ Staple Fastening System

Belt Thickness: 1/4" – 25/32" (6–20 mm)
PIW Max: 800–2000 PIW (1400–3500 kN/m)
Min. Pulley Diameter: 10"–20" (250–500 mm)

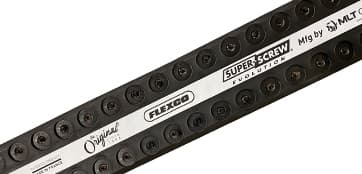

MLT SUPER-SCREW® Flexible Rubber Fastening System

Belt Thickness: 5/32" – 3/4" (4–19 mm)
PIW Max: 0–1430 PIW (35–250 kN/m)
Min. Pulley Diameter: 6"–20" (152–508 mm)

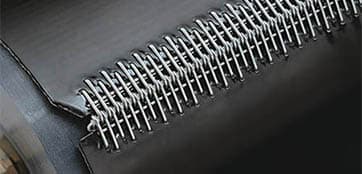

Clipper® Wire Hook Fastening System

Belt Thickness: Up thru 25/64" (up thru 10 mm)
PIW Max: 200 PIW (35 kN/m)
Min. Pulley Diameter: 15/16"–7" (24–175 mm)

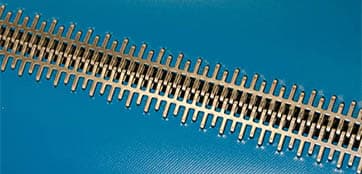

Clipper® G Series™ Fastening System

Belt Thickness: .059"–.197" (1.5–5 mm)
PIW Max: 100 PIW (17 kN/m)
Min. Pulley Diameter: 1.6"–3.0" (40–75 mm)

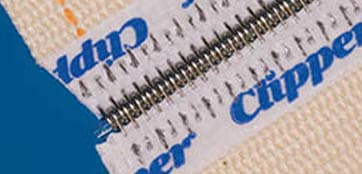

Clipper® Laundry Patch Fastening System

Belt Thickness: .078" (2 mm)
PIW Max: Not Applicable
Min. Pulley Diameter: 15/16" (25 mm)

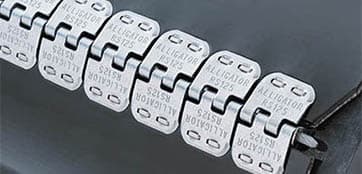

Alligator® Staple Fastening System

Belt Thickness: 1/16"–1/4" (1.5–6.4 mm)
PIW Max: 100–200 PIW (17–35 kN/m)
Min. Pulley Diameter: 2"–4" (50–102 mm)

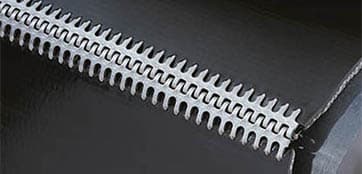

Alligator® Lacing Fastening System

Belt Thickness: Up thru 1/2" (up thru 12.7 mm)
PIW Max: 25–200 PIW (4.3–35 kN/m)
Min. Pulley Diameter: 1"–14" (25–356 mm)

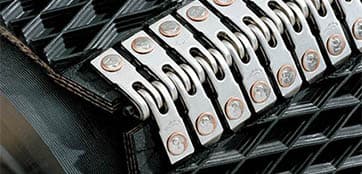

Alligator® Rivet Fastening System

Belt Thickness: 13/64"–15/64" (5–5.8 mm)
PIW Max: 300 PIW (52 kN/m)
Min. Pulley Diameter: 3-1/2" (88 mm)

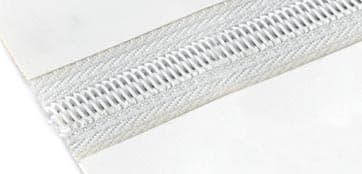

Alligator® Spiral Lace Fastening System

Belt Thickness: 1/16"–3/16" (1.6–4.6 mm)
PIW Max: 50 PIW (8.7 kN/m)
Min. Pulley Diameter: 3/8"–5/8" (10–15 mm)

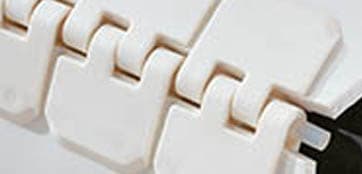

Alligator® Plastic Rivet Fastening System

Belt Thickness: Up thru 1/8" (up thru 3.2 mm)
PIW Max: 40–65 PIW (7–11 kN/m)
Min. Pulley Diameter: 1-1/2"–3" (38–75 mm)

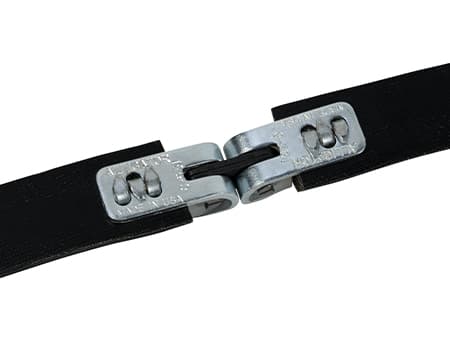

Alligator® V-Belt Fastening System

Belt Thickness: Not Applicable
PIW Max: Not Applicable
Min. Pulley Diameter: Not Applicable

Conveyor Components

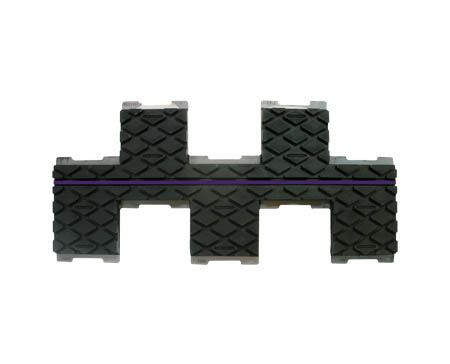

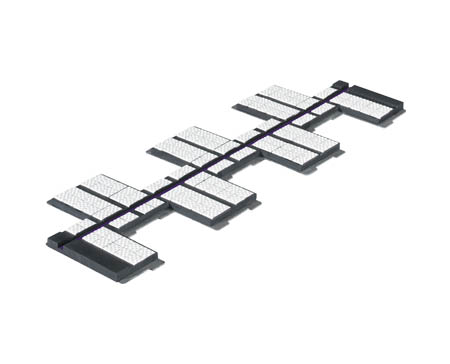

Ceramic Pulley Lagging

Ceramic Pulley Lagging is an industrial rubber covering designed to be permanently welded onto conveyor pulley surfaces.

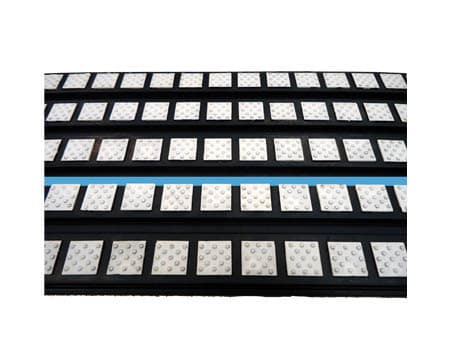

Flex-Lag® Roll Lagging — FRAS Rubber (Medium Ceramic, 5/8")

Ordering Number: CLMFR6.5/21-15
Item Code: 61319
Pattern: Medium Ceramic
Thickness: 5/8" (15 mm)
Length: 21 ft (6.5 M)
Rubber Compound: FRAS — 68 ± 3 Shore A
Ceramic: Aluminum Oxide (Al₂O₃), 83 HRA
Temperature Range: 5°F to 185°F (-15°C to 85°C)

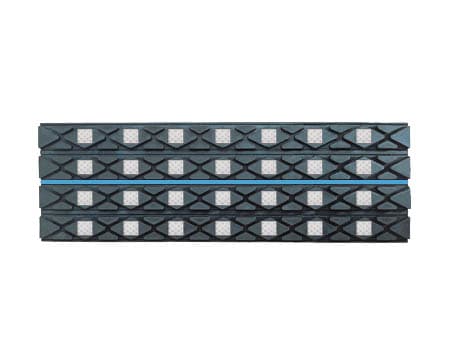

Flex-Lag® Roll Lagging — FRAS Rubber (Diamond Ceramic, 1/2")

Ordering Number: 12FRDC6.5/21
Item Code: 71159
Pattern: Medium Ceramic (Diamond)
Thickness: 1/2" (12 mm)
Length: 21 ft (6.5 M)
Rubber Compound: FRAS — 68 ± 3 Shore A
Ceramic: Aluminum Oxide (Al₂O₃), 83 HRA
Temperature Range: 5°F to 185°F (-15°C to 85°C)

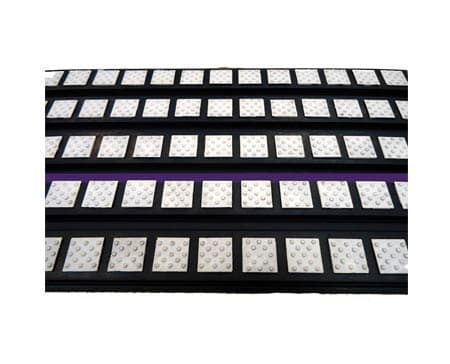

Flex-Lag® Roll Lagging — SBR Rubber (Medium Ceramic, 5/8")

Ordering Number: CLMN6.5/21-15
Item Code: 62216
Pattern: Medium Ceramic
Thickness: 5/8" (15 mm)
Length: 21 ft (6.5 M)
Rubber Compound: SBR — 68 ± 3 Shore A
Ceramic: Aluminum Oxide (Al₂O₃), 83 HRA
Temperature Range: 5°F to 185°F (-15°C to 85°C)

Flex-Lag® Roll Lagging — SBR Rubber (Diamond Ceramic, 1/2")

Pattern: Medium Ceramic (Diamond)
Thickness: 1/2" (12 mm)
Length: 21 ft (6.5 M)
Rubber Compound: SBR — 68 ± 3 Shore A
Ceramic: Aluminum Oxide (Al₂O₃), 83 HRA
Temperature Range: 5°F to 185°F (-15°C to 85°C)

Flex-Lag® Strip Lagging — FRAS Rubber (1668)

Format: Strip Lagging
Rubber Compound: FRAS
Ceramic: Aluminum Oxide (Al₂O₃), 83 HRA
Temperature Range: 5°F to 185°F (-15°C to 85°C)

Flex-Lag® Strip Lagging — FRAS Rubber (1669)

Format: Strip Lagging
Rubber Compound: FRAS
Ceramic: Aluminum Oxide (Al₂O₃), 83 HRA
Temperature Range: 5°F to 185°F (-15°C to 85°C)

Conveyor Components

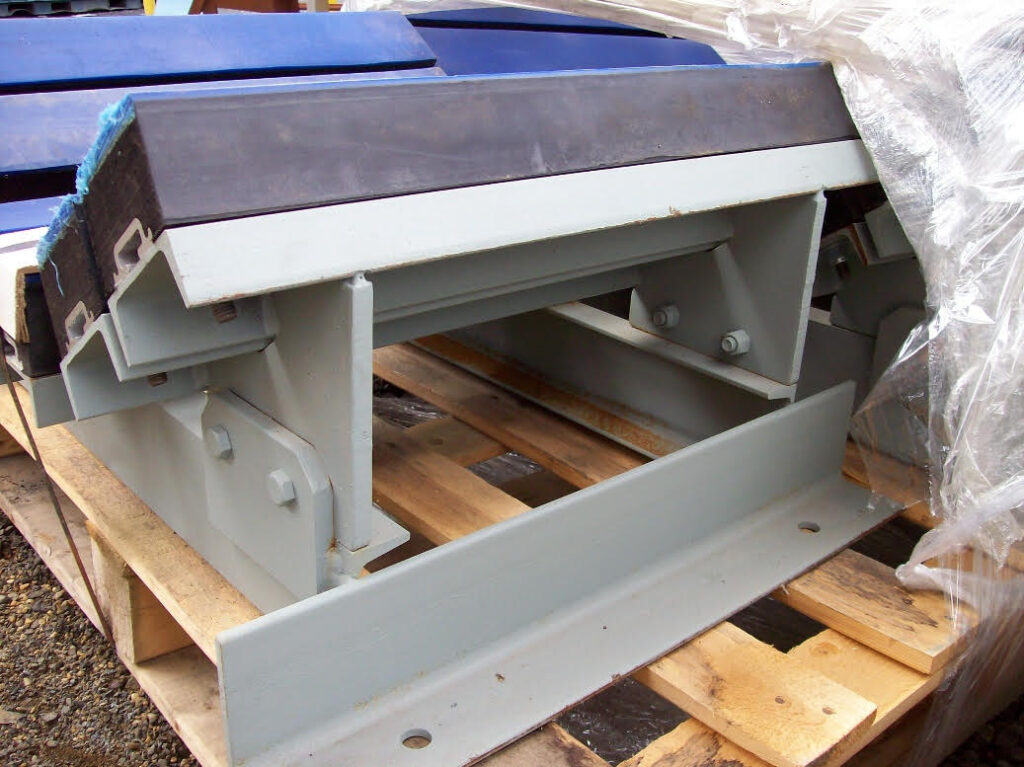

Impact Bed

An impact bed protects the conveyor belt by absorbing the shock of falling material, reducing belt damage, and keeping the loading zone stable, safe, and efficient.

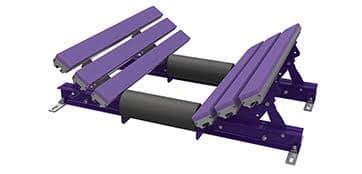

Slider Beds

Adjustable Trough Angle: 20°, 35°, 45°
Impact Energy: Up to 200 lb-ft (25 kg-m)
Belt Widths: 24" to 72" (600 to 1800 mm)

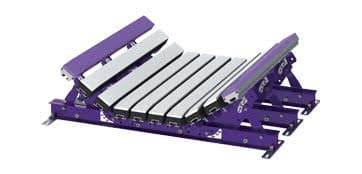

Impact Beds

Adjustable Trough Angle: 20°, 35°, 45°
Impact Energy: Up to 750 lb-ft (100 kg-m)
Belt Widths: 24" to 72" (600 to 1800 mm)

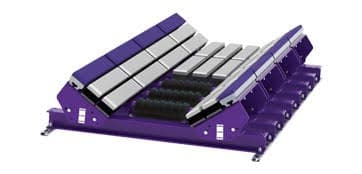

Modular Impact Beds

Adjustable Trough Angle: 20°, 35°, 45°
Impact Energy: Up to 1500 lb-ft (200 kg-m)
Belt Widths: 24" to 72" (600 to 1800 mm)

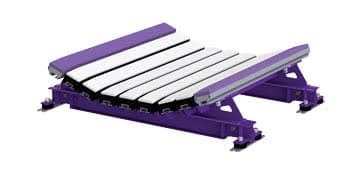

DRX™ 200 Impact Beds

Available Trough Angles: 20°, 35°
Impact Energy: Up to 200 lb-ft (25 kg-m)
Belt Widths: 24" to 72" (600 to 1800 mm)

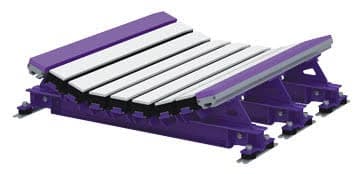

DRX™ 750 Impact Beds

Available Trough Angles: 20°, 35°
Impact Energy: Up to 750 lb-ft (100 kg-m)
Belt Widths: 24" to 72" (600 to 1800 mm)

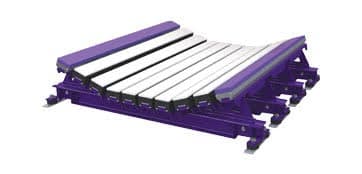

DRX™ 1500 Impact Beds

Available Trough Angles: 20°, 35°
Impact Energy: Up to 1500 lb-ft (200 kg-m)
Belt Widths: 24" to 72" (600 to 1800 mm)

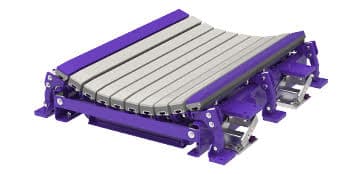

DRX™ 3000 Impact Beds

Available Trough Angles: 20°, 35°
Impact Energy: Up to 3000 lb-ft (400 kg-m)
Belt Widths: 36" to 96" (900 to 2400 mm)

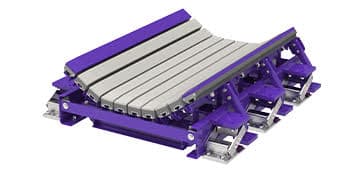

DRX™ 4500 Impact Beds

Available Trough Angles: 20°, 35°
Impact Energy: Up to 4500 lb-ft (600 kg-m)
Belt Widths: 36" to 96" (1050 to 2400 mm)

Conveyor Components

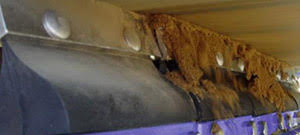

Belt Cleaner

A conveyor belt cleaner removes carry back, prevents material spills, protects equipment, improves safety, and helps maintain reliable production.

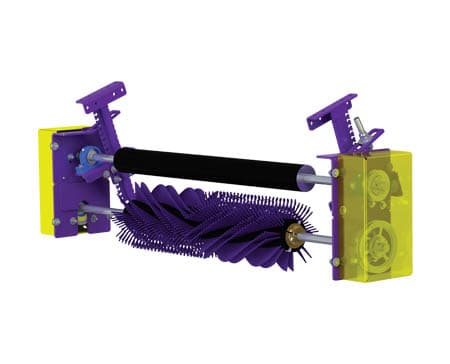

Belt-Driven Brush Cleaner

Maximum Belt Speed: 700 FPM (3.5 M/sec)
Temperature Rating: -20°F to 180°F (-30°C to 82°C)
Bristle Length: 3-1/4" (83 mm)
Belt Widths: 24" to 72" (600 to 1800 mm)

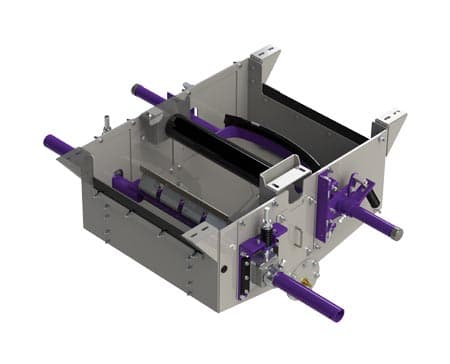

Wash Box

Maximum Belt Speed: 1500 FPM (7.6 M/sec)
Temperature Rating: 30°F to 180°F (-35°C to 82°C)
Material: Galvanized or Stainless Steel
Belt Widths: 24" to 96" (600 to 2400 mm)

Conveyor Components

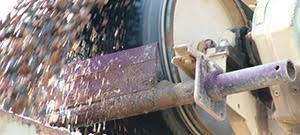

Pre-Cleaner

A precleaner is a cost-effective, low-maintenance belt cleaning solution designed for easy installation on the head pulley.

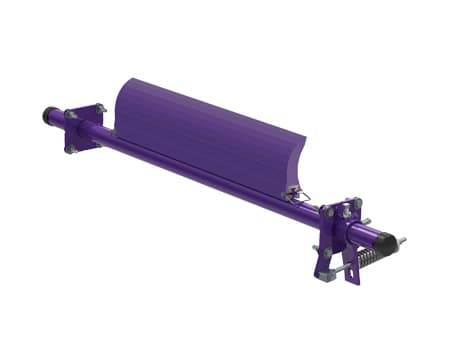

EZP1 Precleaner

Maximum Belt Speed: 700 FPM (3.5 M/sec)
Temperature Rating: -30°F to 180°F (-35°C to 82°C)
Blade Material: Polyurethane (ConShear)
Belt Widths: 12" to 72" (300 to 1800 mm)

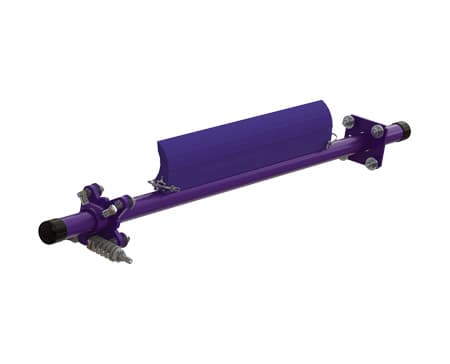

EZP-LS Limited Space Precleaner

Maximum Belt Speed: 500 FPM (2.5 M/sec)
Temperature Rating: -30°F to 180°F (-35°C to 82°C)
Blade Material: Polyurethane (ConShear LS)
Belt Widths: 12" to 60" (300 to 1500 mm)

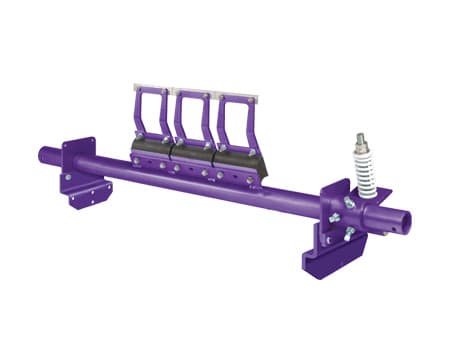

H-Type® with V-Tips Precleaner

Maximum Belt Speed: 1000 FPM (5 M/sec)
Temperature Rating: -30°F to 180°F (-35°C to 82°C)
Blade Material: Long Life Tungsten Carbide
Belt Widths: 18" to 72" (450 to 1800 mm)

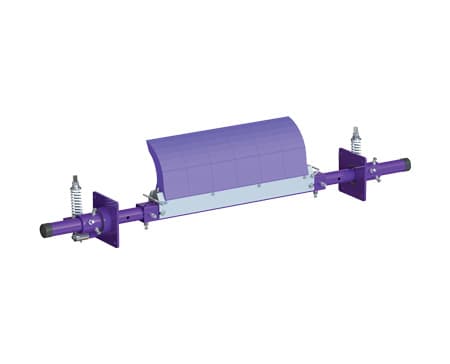

MHCP Precleaner

Maximum Belt Speed: 1200 FPM (6 M/sec)
Temperature Rating: -30°F to 180°F (-35°C to 82°C)
Blade Material: Polyurethane 90 Durometer (segmented cartridge)
Belt Widths: 24" to 96" (600 to 2400 mm)

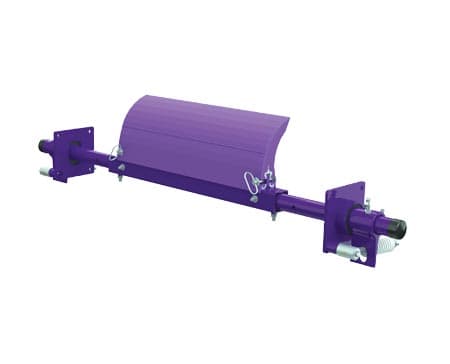

MHP Heavy-Duty Precleaner

Maximum Belt Speed: 1500 FPM (7.5 M/sec)
Blade Material: MegaShear™ Solid Urethane
Pulley Diameter: 20" to 84" (500 to 2100 mm)
Belt Widths: 24" to 96" (600 to 2400 mm)

Conveyor Components

Belt Plow

A plow is used to clean and protect the underside of the conveyor belt, ensuring that no rocks or debris get pulled into the tail pulley.

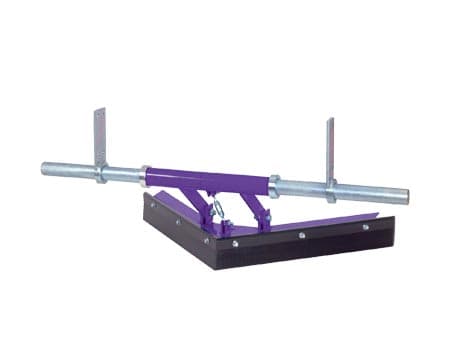

V-Plow

Maximum Belt Speed: 1000 FPM (5 M/sec)
Temperature Rating: -40°F to 160°F (-40°C to 71°C)
Blade Material: UHMWPE 67-D durometer
Belt Widths: 18" to 96" (450 to 2400 mm)

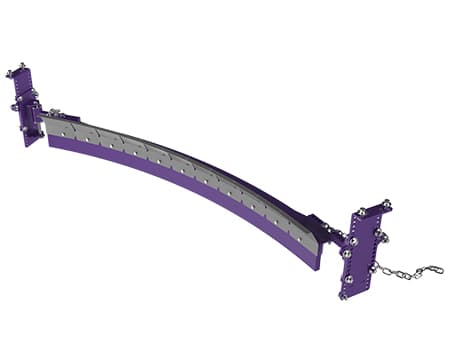

MXDP Extreme Duty Diagonal Plow

Maximum Belt Speed: 2000 FPM (10.0 M/sec)
Temperature Rating: -20°F to 180°F (-30°C to 82°C)
Blade Material: Polyurethane
Belt Widths: 48" to 120" (1200 to 3000 mm)

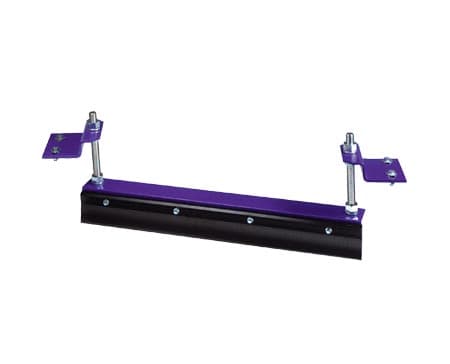

RDP1 Diagonal Plow

Maximum Belt Speed: 700 FPM (3.5 M/sec)
Temperature Rating: -40°F to 160°F (-40°C to 71°C)
Blade Material: UHMWPE 67-D durometer
Belt Widths: 18" to 84" (450 to 2100 mm)

Conveyor Components

Belt Trainer

A belt trainer automatically corrects belt misalignment to prevent spills, reduce wear, and maintain safe, reliable conveyor performance.

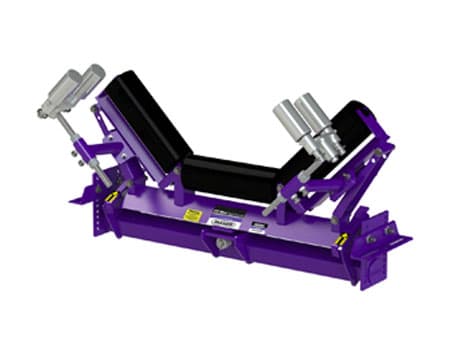

PT Max™ Adjustable Top Side

Maximum Belt Speed: 1200 FPM (6 M/sec)
Temperature Rating: -40°F to 180°F (-40°C to 82°C)
Max Belt Tension: 3000 PIW (SD) / 6000 PIW (HD)
Belt Widths: 36" to 84" (900 to 2100 mm)

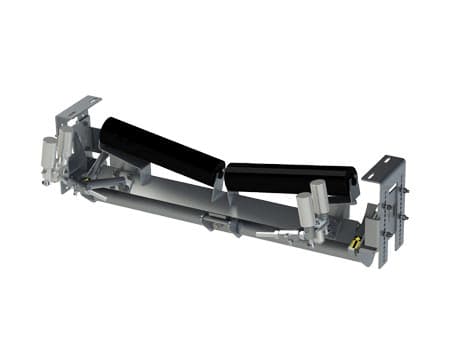

PT Max™ Stainless Steel Original V-Return Side

Maximum Belt Speed: 1200 FPM (6 M/sec)
Temperature Rating: -40°F to 180°F (-40°C to 82°C)
Max Belt Tension: 3000 / 6000 / 10000 PIW (SD/HD/Super)
Belt Widths: 24" to 120" (600 to 3000 mm)

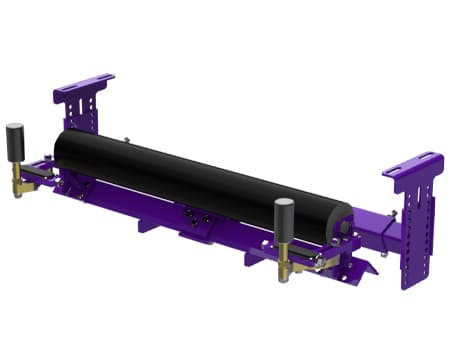

PT Smart™

Maximum Belt Speed: 1000 FPM (5 M/sec)
Temperature Rating: -40°F to 180°F (-40°C to 71°C)
Max Belt Tension: 1600 PIW (280 N/mm)
Belt Widths: 18" to 72" (450 to 1800 mm)

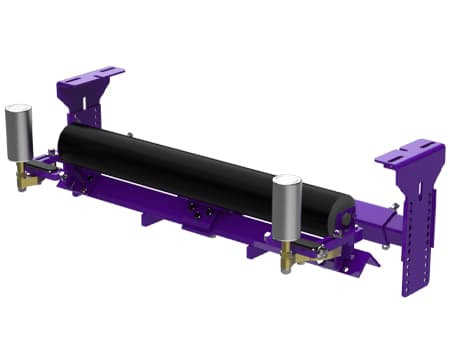

PT Smart™ Underground Structure

Maximum Belt Speed: 1000 FPM (5 M/sec)
Temperature Rating: -40°F to 180°F (-40°C to 71°C)
Max Belt Tension: 1600 PIW (280 N/mm)
Belt Widths: 18" to 72" (450 to 1800 mm)

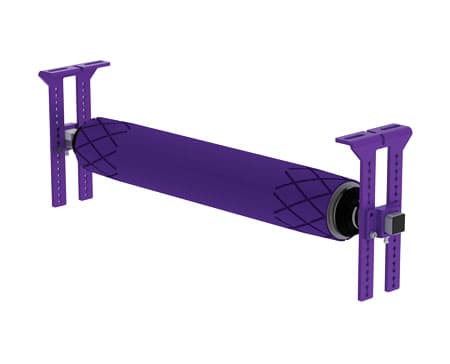

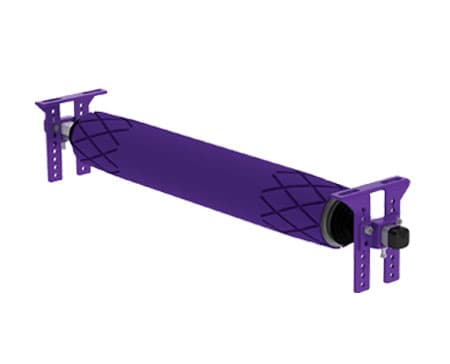

PTEZ™

Maximum Belt Speed: 1000 FPM (5 M/sec)
Temperature Rating: -20°F to 180°F (-30°C to 71°C)
Max Belt Tension: 1600 PIW (280 N/mm)
Belt Widths: 18" to 48" (450 to 1200 mm)

PTEZ™ Heavy-Duty

Maximum Belt Speed: 1000 FPM (5 M/sec)
Temperature Rating: -20°F to 180°F (-30°C to 71°C)
Max Belt Tension: 2400 PIW (420 N/mm)
Belt Widths: 42" to 84" (1050 to 2100 mm)

Conveyor Components

Belt Positioner

Our belt positioner keeps your belt tracking true, preventing misalignment, spillage, and edge damage.

Belt Positioner™

Roller Material: Steel or Exalon (Rubber)
Maximum Belt Speed: 1000 FPM (5 M/sec)
Temperature Rating: -4°F to 220°F (-20°C to 104°C)
Belt Widths: 18" to 96" (450 to 2400 mm)

Reach out today to begin the conversation and take the first step toward securing reliable, adjustable solutions that reduce spillage, control dust, and keep your conveyor running cleaner and more efficiently.

If you are ready to explore how we can support your operational needs, our specialists are prepared to answer your questions, provide technical guidance, and ensure you receive the right bonding solution for your application.

Our Suppliers

We work with trusted suppliers to ensure consistent quality, reliable availability, and products you can count on. By partnering with industry-leading manufacturers, we're able to offer proven solutions that meet real-world demands.

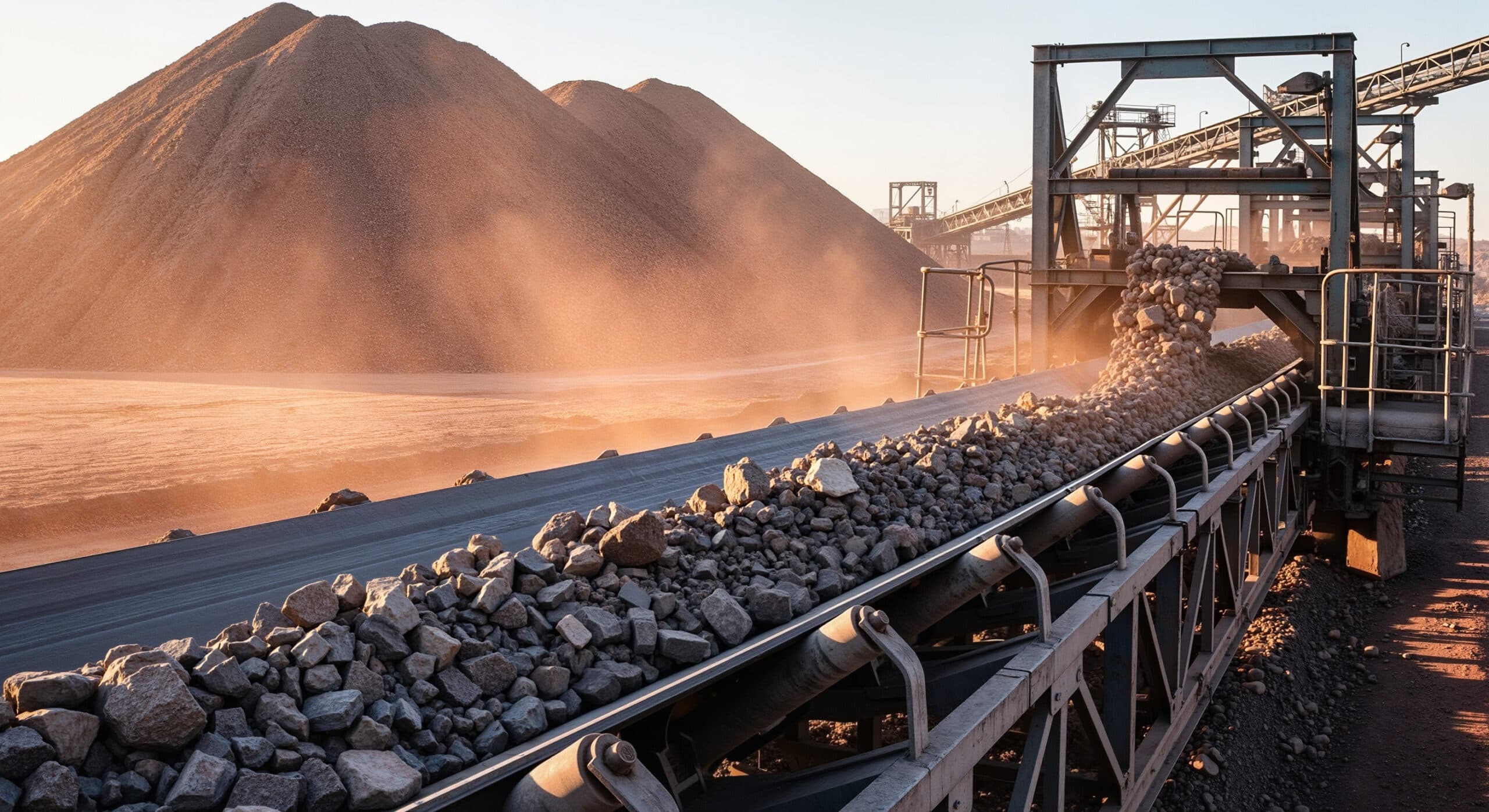

Why Mining Operations Trust B&R Rubber

Mining environments demand durability, precision, and fast, reliable service — and that is exactly why operations turn to B&R Rubber. Our team understands the pressures of heavy industry and delivers solutions built to withstand abrasion, impact, and extreme conditions.
