Products

Conveyor Belts

We supply reliable, industry-ready conveyor belts designed for consistent performance and efficient material handling across demanding operations.

CLIENT

Client Name

With our three locations spanning across Ontario, B&R Rubber Services is your reliable source for product and on site innovation.

B&R Rubber Services - a company dedicated to providing high-quality conveyor belts to clients throughout North America.

At B&R Rubber Services, we keep your operation moving. With extensive footage on hand and fast turnaround for cutting, splicing, and installation, we ensure you get the belt you need without downtime.

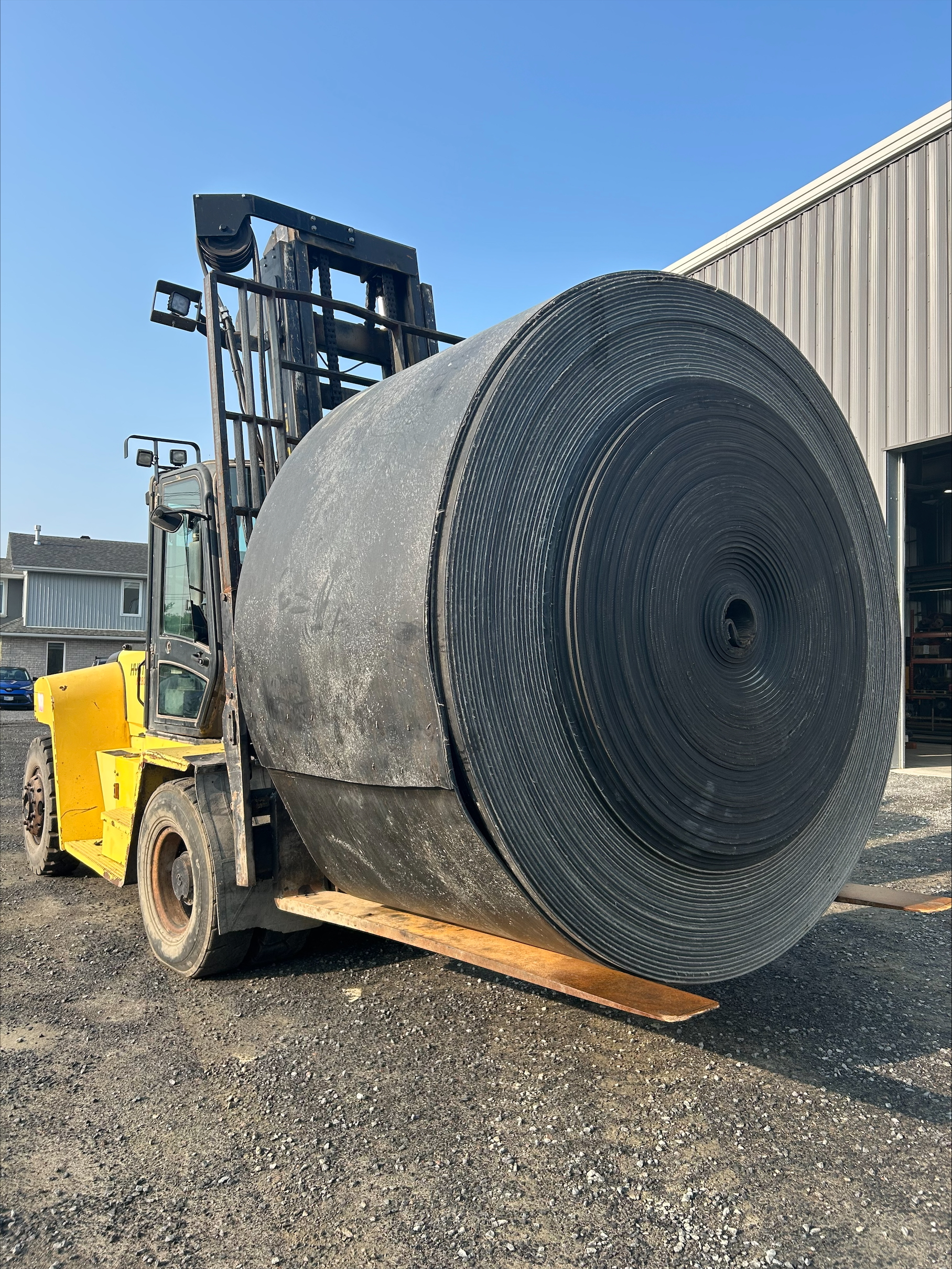

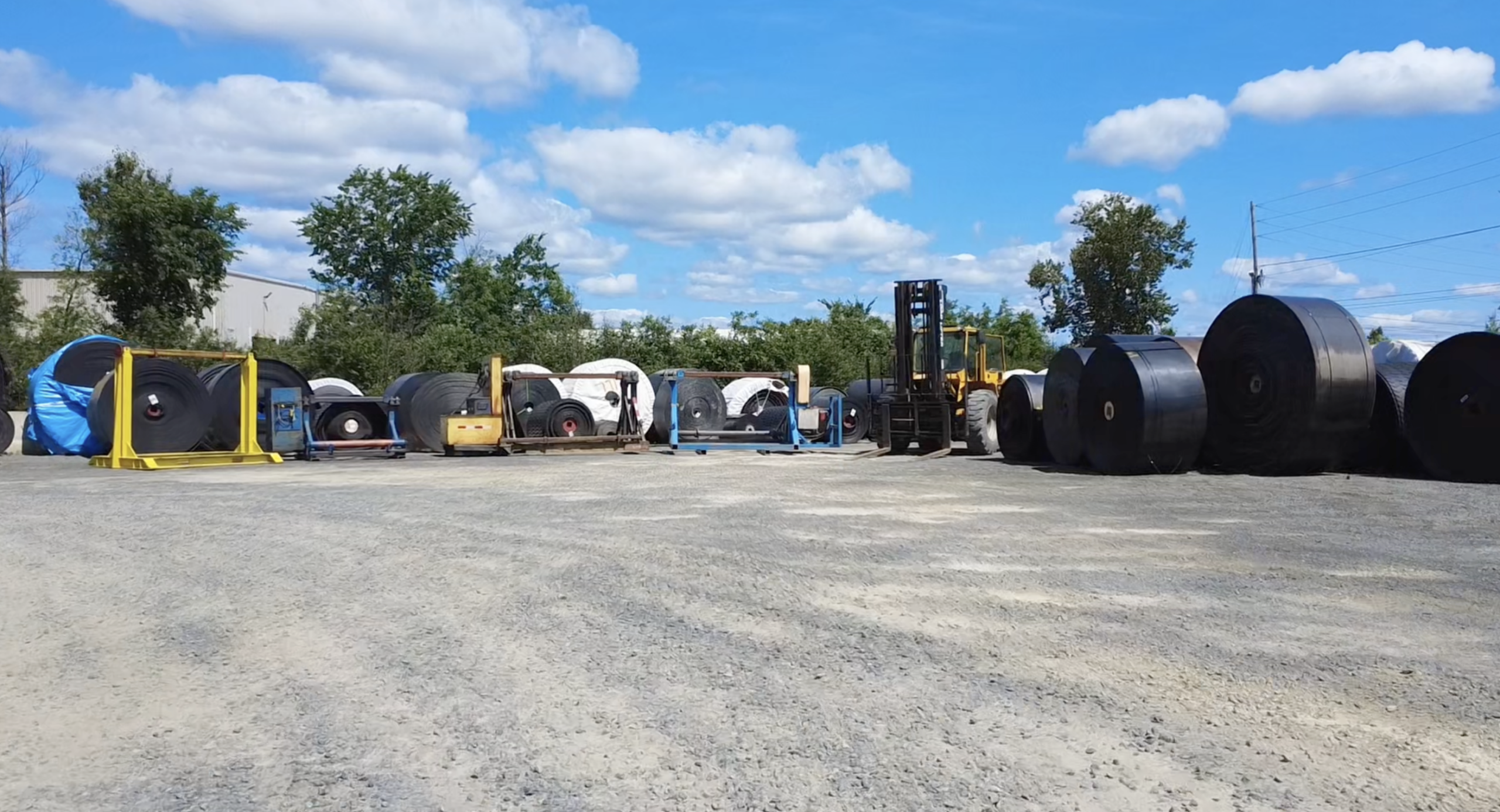

  • Extensive Inventory: Our main facility maintains a large, ready-to-ship inventory of high-quality conveyor belts.
  • Strategic Supplier Network: Our trusted supplier operates multiple warehouses across North America, ensuring fast access to additional stock when needed.

  • Industry Expertise: We specialize in serving the mining and aggregate sectors, delivering products that withstand the toughest environments.

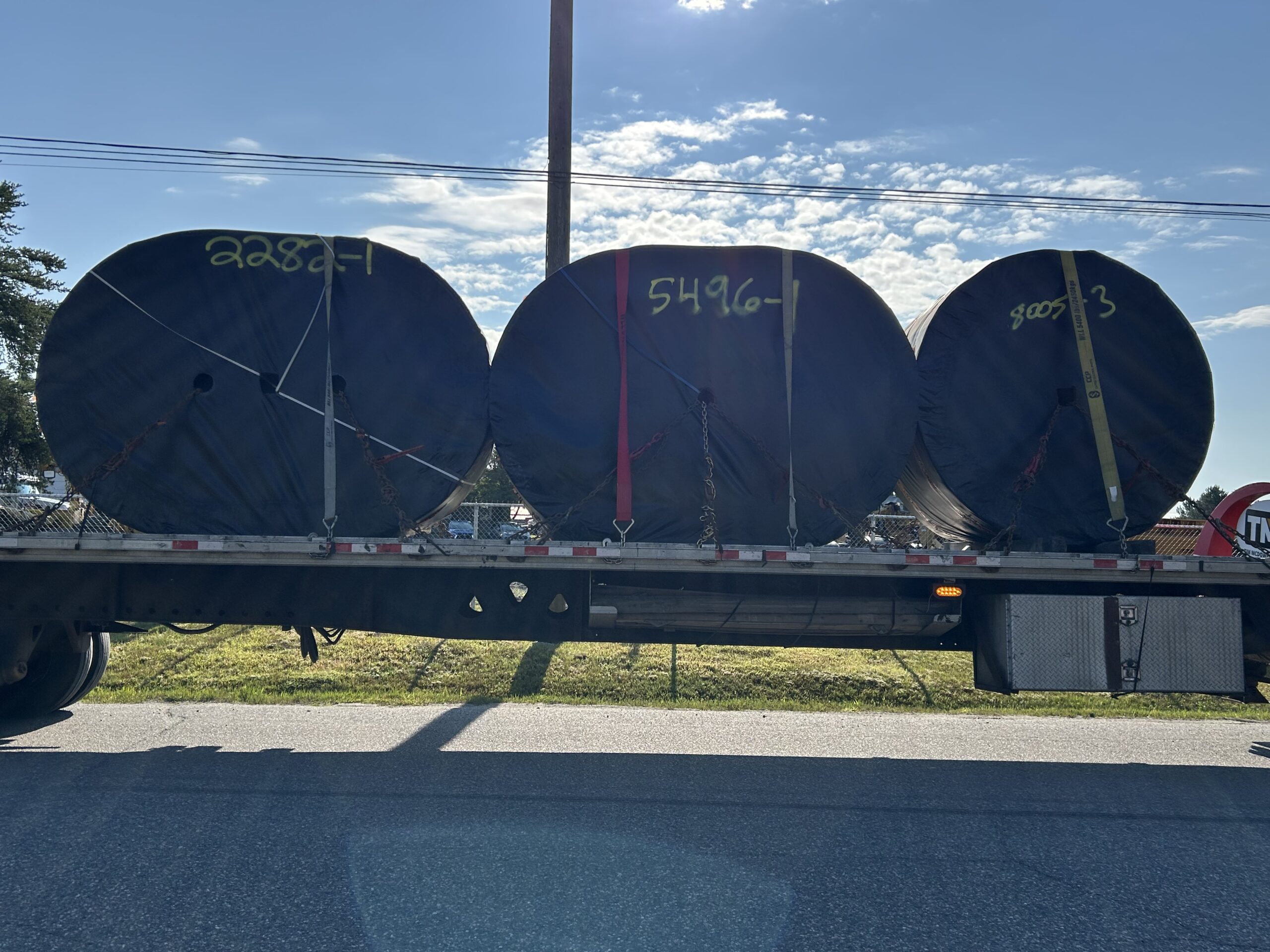

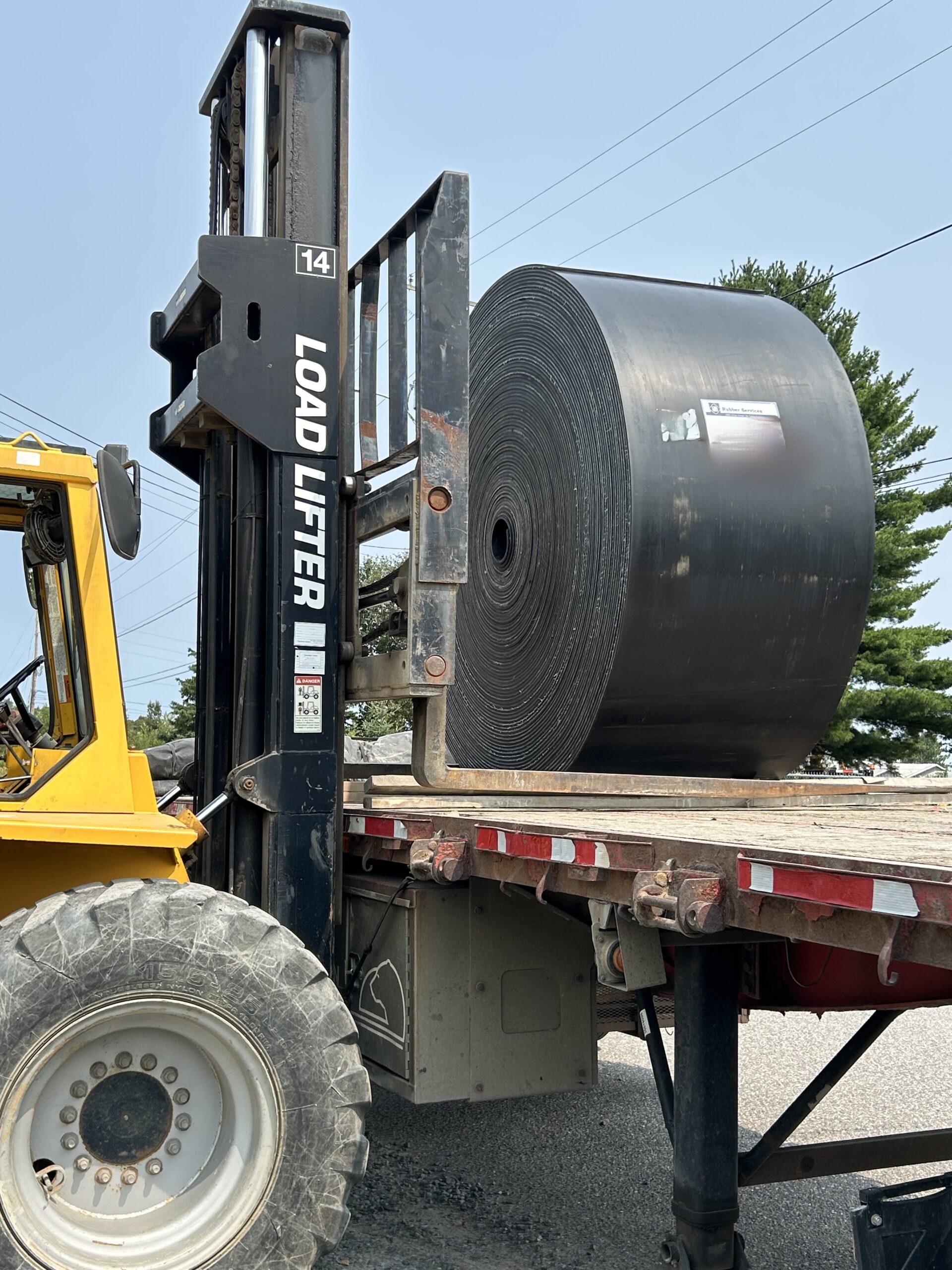

  • Fast, Reliable Delivery: With strong logistics and strategic stock levels, we reduce downtime and deliver belts quickly—where and when you need them.

Built from high-strength rubber compounds and reinforced carcass materials, modern conveyor belts deliver long-term resistance to abrasion, impact, and tension. Their reliability makes them essential for applications such as aggregate handling, mining operations, processing facilities, and any system where dependable material movement and reduced downtime are vital.

Belts

We offer specialized conveyor belt solutions engineered for unique challenges, providing enhanced durability, resistance, and performance where standard belts fall short.

Specialty Products

We offer specialized conveyor belt solutions engineered for unique challenges, providing enhanced durability, resistance, and performance where standard belts fall short.

Conveyor Components

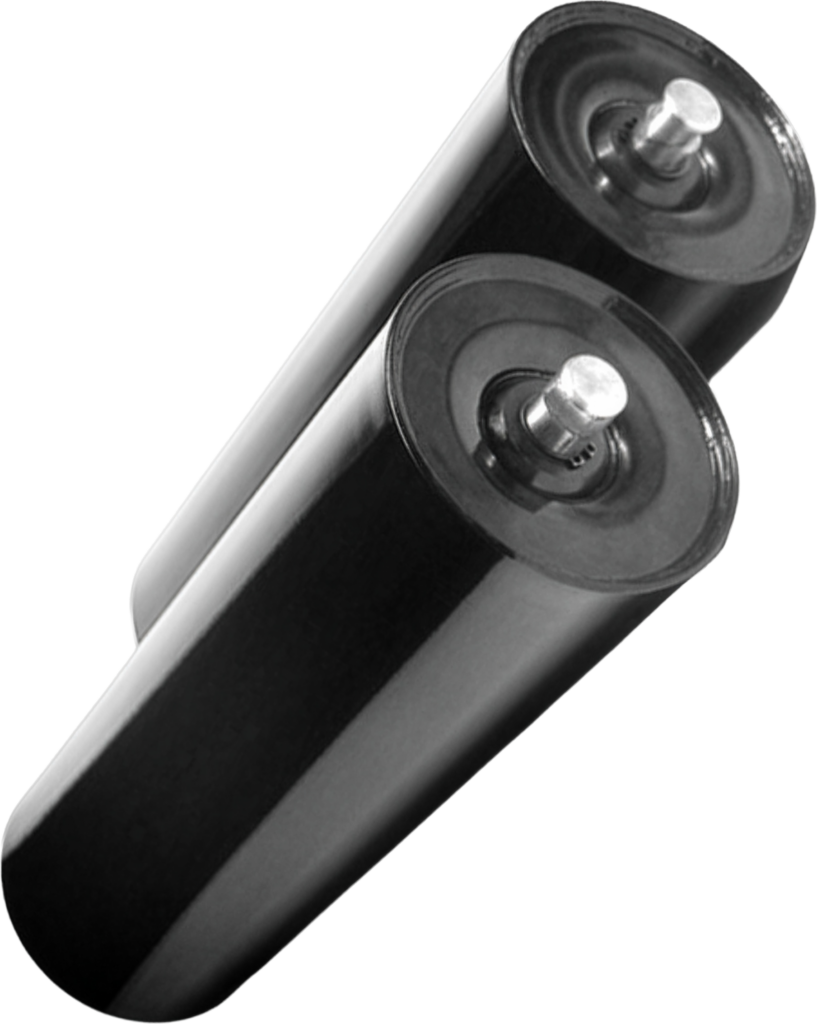

We supply reliable conveyor components that support smooth, efficient system performance. Each component is selected to enhance durability, reduce downtime, and keep your material moving consistently.

Conveyor Belts

Conveyor Components

Conveyor components are the essential mechanical parts that support, guide, and maintain the movement of a conveyor system.

These elements work together to ensure smooth material flow, reduced wear, and optimal operational efficiency across industrial environments. Engineered for durability and consistent performance, quality conveyor components help minimize downtime and extend the lifespan of your equipment. Whether used in heavy-duty mining, aggregate handling, or general material-processing applications, these parts are critical for reliable system performance and long-term productivity.

Reach out today to begin the conversation and take the first step toward securing reliable conveyor components that keep your system running smoothly and efficiently.

If you are ready to explore how Conveyor Components can support your operational needs, our specialists are prepared to answer your questions, provide technical guidance, and ensure you receive the right bonding solution for your application.

Conveyor Belts

Belts

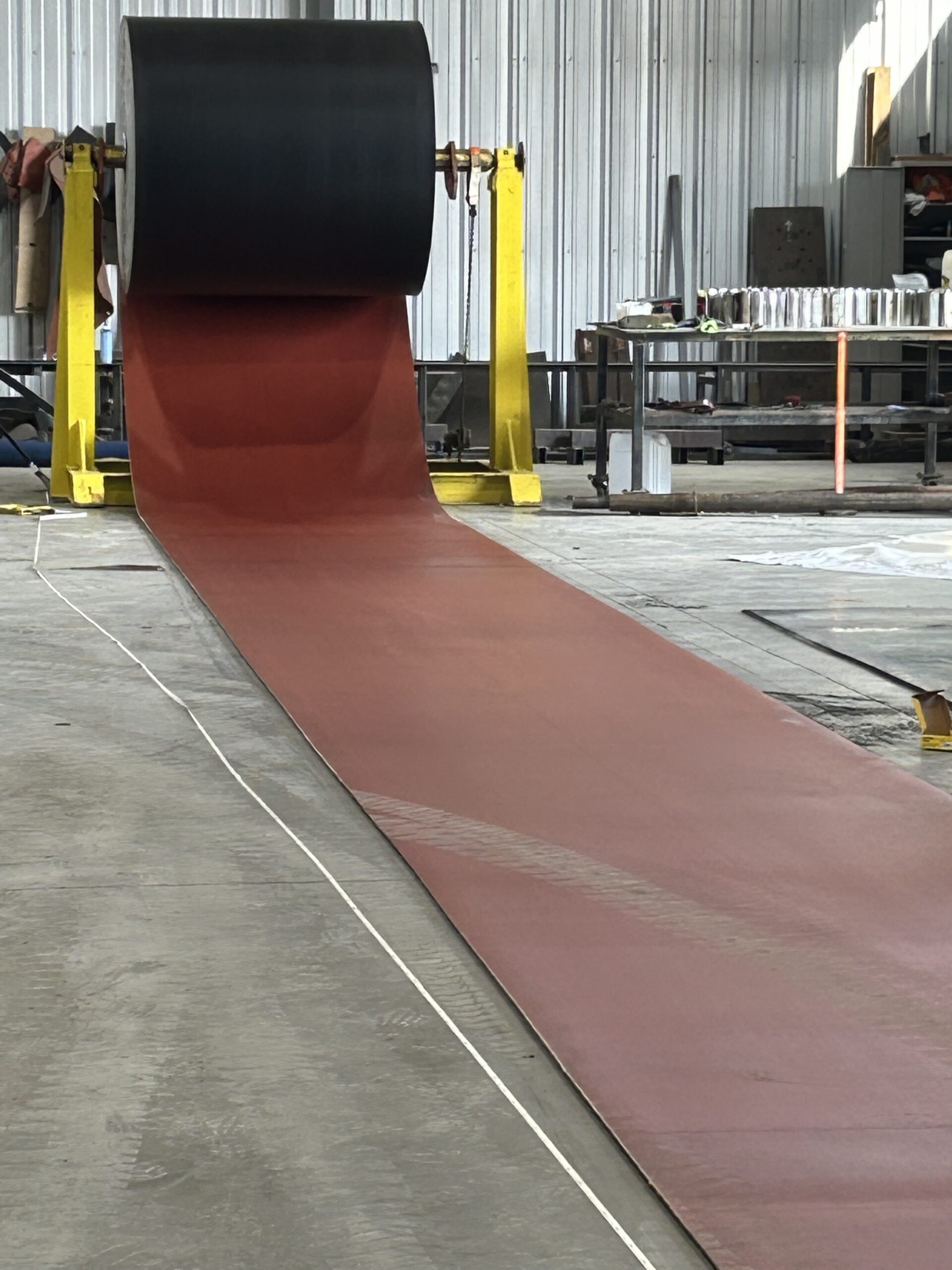

Our conveyor belts are engineered with high-quality fabric constructions designed for the bulk material handling industry.

Built with advanced synthetic materials, they deliver exceptional adhesion and superior resistance to edge wear, impact, tearing, ripping, rot, and mildew. These belts offer enhanced breaking strength, improved troughing and tracking performance, and controlled elongation—ensuring durability, reliability, and long-lasting operation in demanding environments.

We offer a wide selection of conveyor belt cover compounds, including:

  • RMA-1 and RMA-2
  • DIN Y, DIN X, DIN W
  • High-Temperature EPDM
  • Oil-Resistant (OR)

  • Moderately Oil-Resistant (MOR)
  • High Abrasion Resistant (HAR)
  • Hot Asphalt, and MSHA-approved covers

Our belts are available in widths from 18″ to 84″ without fabric joins and in constructions ranging from 1 to 6 plies. Rubber cover thicknesses range from 1/32″ (0.8 mm) to 1/2″ (13 mm).

We use durable PN (Polyester/Nylon) and NN (Nylon/Nylon) fabrics with strengths from 75 to 300 PIW per ply, and straight-warp fabrics up to 700 PIW per ply are available upon request.

All belts are manufactured under strict quality systems that meet industry standards for tensile strength, abrasion resistance, adhesion, hardness, and dimensional tolerances— ensuring reliable performance in demanding applications.

Conveyor Belts

Specialty Products

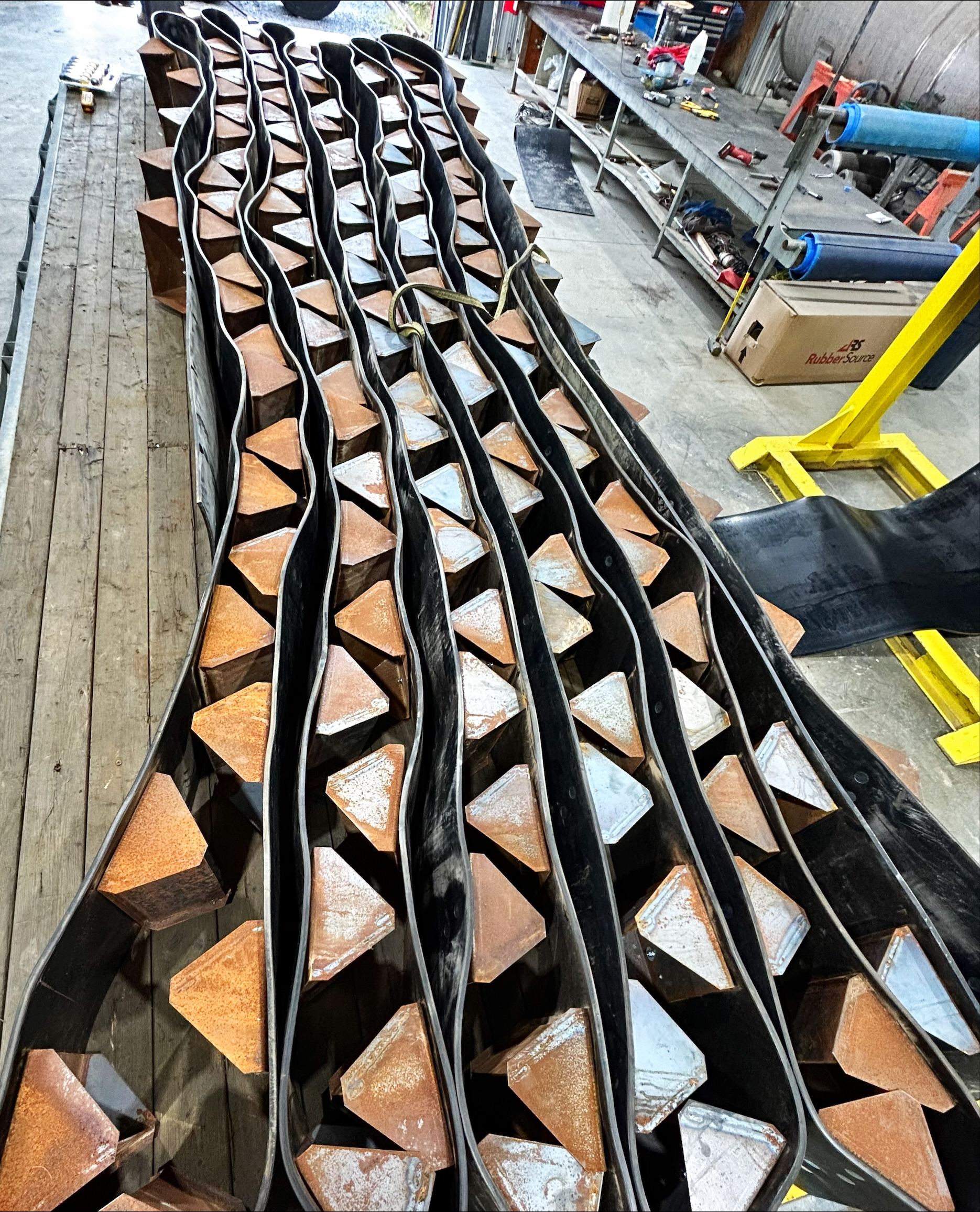

Specialty conveyor products are engineered solutions designed for applications where standard belts and components cannot meet specific performance or environmental demands.

Developed to enhance safety, increase efficiency, and solve specialized material-handling challenges, specialty products deliver reliable performance in demanding industrial settings. They offer tailored advantages—such as higher temperature tolerance, improved grip, or enhanced longevity—ensuring your system operates smoothly even under non-standard or high-stress conditions.

Winch-Hoist from MY-TE

A powerful winch-hoist on site is essential for safe, efficient belt change outs.

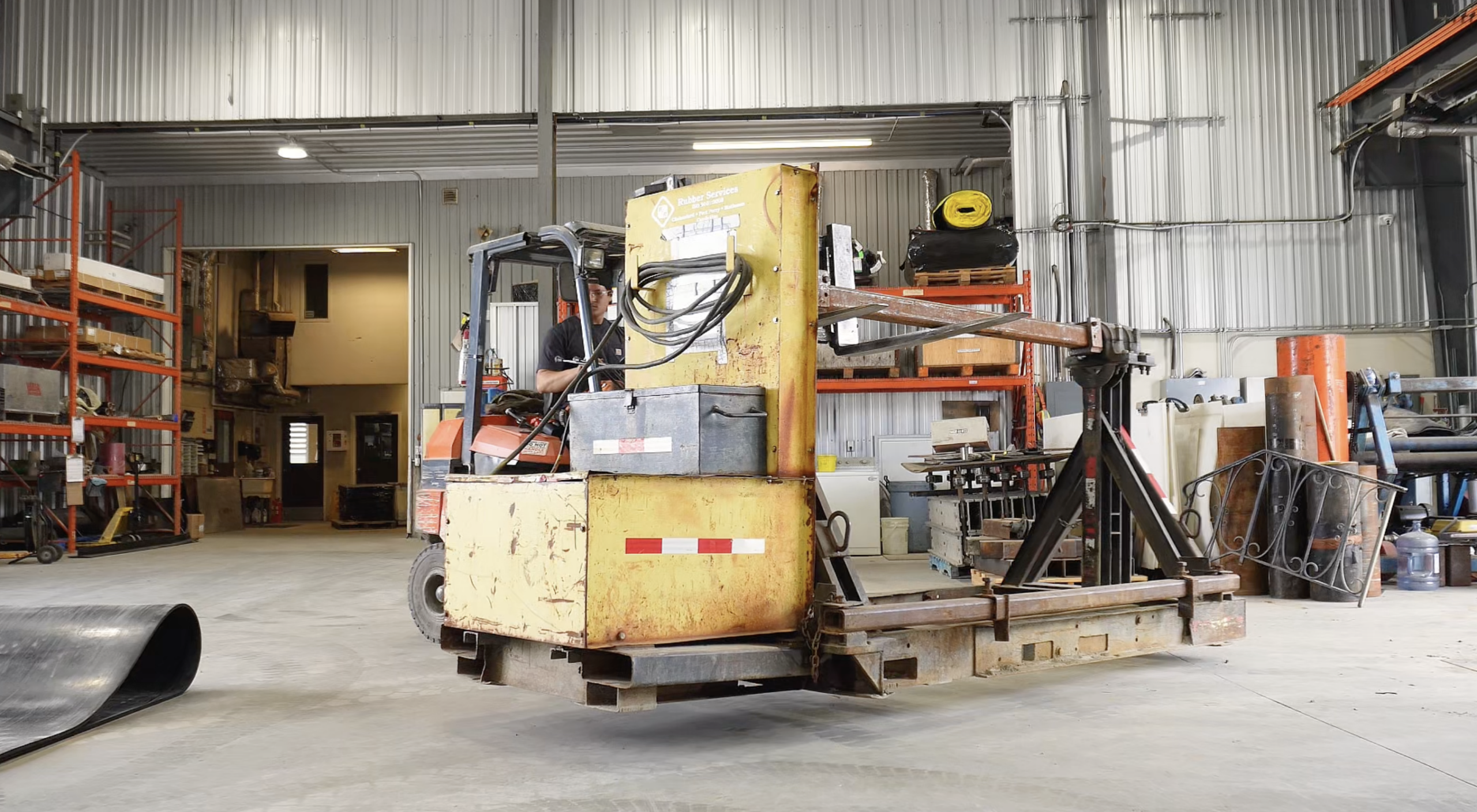

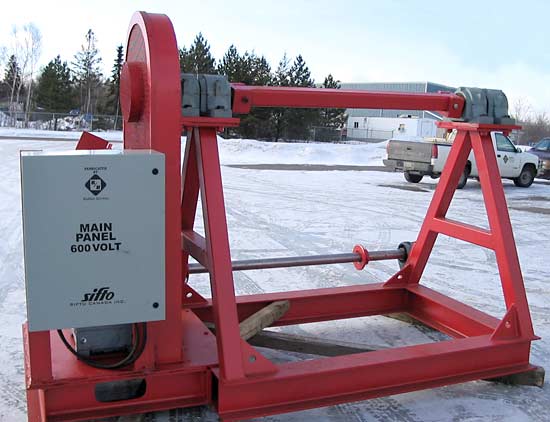

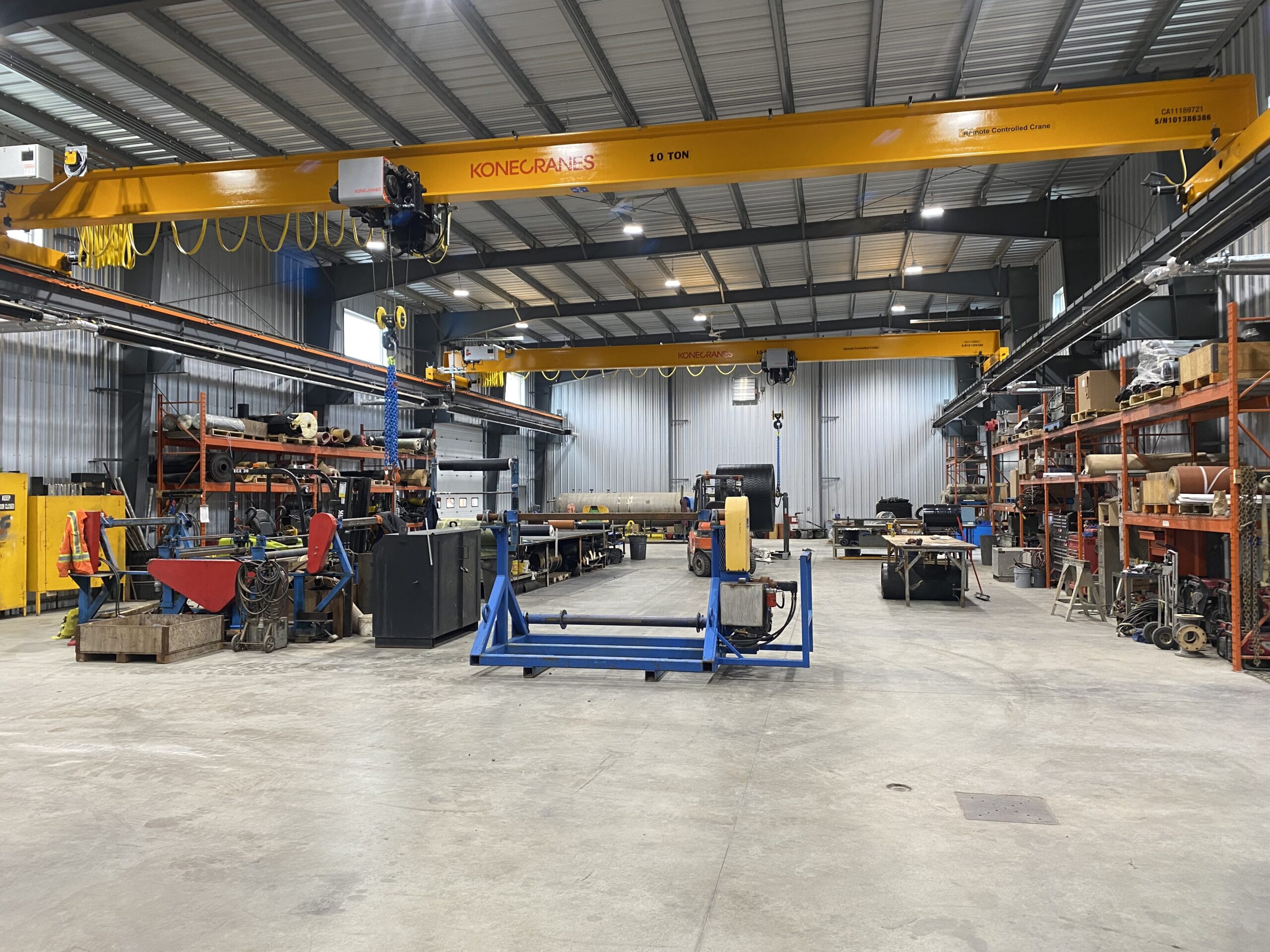

Winder

A conveyor belt winder on site enables fast, safe, and efficient belt changeups. It reduces downtime, improves safety, and protects the belt during removal and installation.

Reach out today to begin the conversation and take the first step toward finding the right specialty conveyor solutions for your unique operational challenges.

If you are ready to explore how we can support your operational needs, our specialists are prepared to answer your questions, provide technical guidance, and ensure you receive the right bonding solution for your application.

Watch Our Video

At B&R Rubber Services, we’ve spent more than four decades building a reputation for dependable, responsive solutions across industries of all sizes. This video highlights how our skilled technicians and comprehensive capabilities bring efficiency and quality to every job we undertake.

Image Product Details
Flexco® Bolt Solid Plate Fastening System

Flexco® Bolt Solid Plate Fastening System

  • Belt Thickness: 3/16" – 1-3/16" (5–30 mm)
  • PIW Max: 150–620 PIW (30–100 kN/m)
  • Min. Pulley Diameter: 12"–48" (300–1220 mm)
Flexco® Bolt Hinged Fastening System

Flexco® Bolt Hinged Fastening System

  • Belt Thickness: 1/4" – 5/8" (6–16 mm)
  • PIW Max: 190–300 PIW (33–52 kN/m)
  • Min. Pulley Diameter: 6"–9" (152–230 mm)
Flexco® Rivet Solid Plate Fastening System

Flexco® Rivet Solid Plate Fastening System

  • Belt Thickness: 7/32" – 15/16" (6–24 mm)
  • PIW Max: 400–800 PIW (70–140 kN/m)
  • Min. Pulley Diameter: 14"–36" (350–900 mm)
Flexco® Rivet Hinged Fastening System

Flexco® Rivet Hinged Fastening System

  • Belt Thickness: 1/8" – 1" (3–25.5 mm)
  • PIW Max: 330–2000 PIW (60–350 kN/m)
  • Min. Pulley Diameter: 5"–42" (127–1050 mm)
FXC™ Steel Cord Belt Fastening System

FXC™ Steel Cord Belt Fastening System

  • Belt Rating: ST500 to ST2500 (428–2140 PIW)
  • kN/m Max: 60–350 kN/m
  • Min. Pulley Diameter: ST500 to ST2500
Flexco® XP™ Staple Fastening System

Flexco® XP™ Staple Fastening System

  • Belt Thickness: 1/4" – 25/32" (6–20 mm)
  • PIW Max: 800–2000 PIW (1400–3500 kN/m)
  • Min. Pulley Diameter: 10"–20" (250–500 mm)
MLT SUPER-SCREW® Flexible Rubber Fastening System

MLT SUPER-SCREW® Flexible Rubber Fastening System

  • Belt Thickness: 5/32" – 3/4" (4–19 mm)
  • PIW Max: 0–1430 PIW (35–250 kN/m)
  • Min. Pulley Diameter: 6"–20" (152–508 mm)
Clipper® Wire Hook Fastening System

Clipper® Wire Hook Fastening System

  • Belt Thickness: Up thru 25/64" (up thru 10 mm)
  • PIW Max: 200 PIW (35 kN/m)
  • Min. Pulley Diameter: 15/16"–7" (24–175 mm)
Clipper® G Series™ Fastening System

Clipper® G Series™ Fastening System

  • Belt Thickness: .059"–.197" (1.5–5 mm)
  • PIW Max: 100 PIW (17 kN/m)
  • Min. Pulley Diameter: 1.6"–3.0" (40–75 mm)
Clipper® Laundry Patch Fastening System

Clipper® Laundry Patch Fastening System

  • Belt Thickness: .078" (2 mm)
  • PIW Max: Not Applicable
  • Min. Pulley Diameter: 15/16" (25 mm)
Alligator® Staple Fastening System

Alligator® Staple Fastening System

  • Belt Thickness: 1/16"–1/4" (1.5–6.4 mm)
  • PIW Max: 100–200 PIW (17–35 kN/m)
  • Min. Pulley Diameter: 2"–4" (50–102 mm)
Alligator® Lacing Fastening System

Alligator® Lacing Fastening System

  • Belt Thickness: Up thru 1/2" (up thru 12.7 mm)
  • PIW Max: 25–200 PIW (4.3–35 kN/m)
  • Min. Pulley Diameter: 1"–14" (25–356 mm)
Alligator® Rivet Fastening System

Alligator® Rivet Fastening System

  • Belt Thickness: 13/64"–15/64" (5–5.8 mm)
  • PIW Max: 300 PIW (52 kN/m)
  • Min. Pulley Diameter: 3-1/2" (88 mm)
Alligator® Spiral Lace Fastening System

Alligator® Spiral Lace Fastening System

  • Belt Thickness: 1/16"–3/16" (1.6–4.6 mm)
  • PIW Max: 50 PIW (8.7 kN/m)
  • Min. Pulley Diameter: 3/8"–5/8" (10–15 mm)
Alligator® Plastic Rivet Fastening System

Alligator® Plastic Rivet Fastening System

  • Belt Thickness: Up thru 1/8" (up thru 3.2 mm)
  • PIW Max: 40–65 PIW (7–11 kN/m)
  • Min. Pulley Diameter: 1-1/2"–3" (38–75 mm)
Alligator® V-Belt Fastening System

Alligator® V-Belt Fastening System

  • Belt Thickness: Not Applicable
  • PIW Max: Not Applicable
  • Min. Pulley Diameter: Not Applicable
Image Product Details
Canoe Liner

Canoe Liner

  • Material: Steel-reinforced polyurethane
  • Liner Heights: 8", 10", 12" (200, 250, 300 mm)
  • Thicknesses: 1", 2", 3" (25, 50, 75 mm)
  • Length: 48" (1200 mm) sections
  • Chamfer Options: Flat or 35-degree
Skirt Wear Liner Kit

Skirt Wear Liner Kit

  • Configurations: Straight or Tangent
  • Wear Liner Options: 1/4" (6 mm) AR400 or 1" (25 mm) Canoe Liner
  • Includes: Upper mounting plate, wear liner, RMC1 Skirt Clamps
  • Retrofits to existing chutes and load zones
RMC1 Skirt Clamp

RMC1 Skirt Clamp

  • Module Size: 4' (1200 mm)
  • Skirt Rubber Thickness: 5/16" to 3/4" (8 to 19 mm)
  • Overall Height — Standard: 7" (180 mm); LS: 4.5" (115 mm)
  • Pin to Clamp Bar — Standard: 4" (100 mm); LS: 2.5" (65 mm)
Flex-Lok™ Skirt Clamp

Flex-Lok™ Skirt Clamp

  • Module Size: 6' (1800 mm)
  • Skirt Rubber Thickness: 5/16" to 1" (8 to 25 mm)
  • Overall Height — Standard: 7" (180 mm); Mini: 4.5" (115 mm)
  • Pin to Clamp Bar — Standard: 4" (100 mm); Mini: 2.5" (65 mm)
  • Available in stainless steel
Flex-Seal™ Skirt System

Flex-Seal™ Skirt System

  • Module Size: 4' (1200 mm)
  • Skirt Rubber Width: 6" (150 mm)
  • Skirt Rubber Thickness: 5/16" to 3/4" (8 to 19 mm)
  • Mineline® endorsed for heavy-tonnage applications
Enclosed Skirt Systems

Enclosed Skirt Systems

  • Rubber Sealing Options: Vertical or Tangential
  • Universal support legs for easy installation
  • Externally adjustable and replaceable liners
  • Sealed rear panel with lift access for washout
  • Can be custom-engineered to fit specific requirements
Standard Polyurethane Skirting

Standard Polyurethane Skirting

  • Material: Soft durometer (65A) urethane
  • Temperature Rating: -20°F to 180°F (-30°C to 82°C)
  • Roll Sizes: 25' (7.6 M) and 50' (15.2 M)
  • Chamfer: 35-degree
  • Heights: 4", 6", 8", 10", 12" (100–300 mm)
Dual Seal Polyurethane Skirting

Dual Seal Polyurethane Skirting

  • Material: Soft durometer (65A) urethane
  • Temperature Rating: -20°F to 180°F (-30°C to 82°C)
  • Roll Sizes: 25' (7.6 M) and 50' (15.2 M)
  • Chamfer: 35-degree
  • Secondary seal provides floating contact area behind main slab
Image Product Details
Flex-Lag® Roll Lagging - FRAS Rubber (Medium Ceramic, 5/8")

Flex-Lag® Roll Lagging — FRAS Rubber (Medium Ceramic, 5/8")

  • Ordering Number: CLMFR6.5/21-15 | Item Code: 61319
  • Pattern: Medium Ceramic
  • Thickness: 5/8" (15 mm)
  • Length: 21 ft (6.5 M)
  • Rubber Compound: FRAS — 68 ± 3 Shore A
  • Ceramic: Aluminum Oxide (Al₂O₃), 83 HRA
  • Temperature Range: 5°F to 185°F (-15°C to 85°C)
Flex-Lag® Roll Lagging - FRAS Rubber (Diamond Ceramic, 1/2")

Flex-Lag® Roll Lagging — FRAS Rubber (Diamond Ceramic, 1/2")

  • Ordering Number: 12FRDC6.5/21 | Item Code: 71159
  • Pattern: Medium Ceramic (Diamond)
  • Thickness: 1/2" (12 mm)
  • Length: 21 ft (6.5 M)
  • Rubber Compound: FRAS — 68 ± 3 Shore A
  • Ceramic: Aluminum Oxide (Al₂O₃), 83 HRA
  • Temperature Range: 5°F to 185°F (-15°C to 85°C)
Flex-Lag® Roll Lagging - SBR Rubber (Medium Ceramic, 5/8")

Flex-Lag® Roll Lagging — SBR Rubber (Medium Ceramic, 5/8")

  • Ordering Number: CLMN6.5/21-15 | Item Code: 62216
  • Pattern: Medium Ceramic
  • Thickness: 5/8" (15 mm)
  • Length: 21 ft (6.5 M)
  • Rubber Compound: SBR — 68 ± 3 Shore A
  • Ceramic: Aluminum Oxide (Al₂O₃), 83 HRA
  • Temperature Range: 5°F to 185°F (-15°C to 85°C)
Flex-Lag® Roll Lagging - SBR Rubber (Diamond Ceramic, 1/2")

Flex-Lag® Roll Lagging — SBR Rubber (Diamond Ceramic, 1/2")

  • Ordering Number: See product page
  • Pattern: Medium Ceramic (Diamond)
  • Thickness: 1/2" (12 mm)
  • Length: 21 ft (6.5 M)
  • Rubber Compound: SBR — 68 ± 3 Shore A
  • Ceramic: Aluminum Oxide (Al₂O₃), 83 HRA
  • Temperature Range: 5°F to 185°F (-15°C to 85°C)
Flex-Lag® Strip Lagging - FRAS Rubber (1668)

Flex-Lag® Strip Lagging — FRAS Rubber

  • See product page for ordering details
  • Format: Strip Lagging
  • Rubber Compound: FRAS
  • Ceramic: Aluminum Oxide (Al₂O₃), 83 HRA
  • Temperature Range: 5°F to 185°F (-15°C to 85°C)
Flex-Lag® Strip Lagging - FRAS Rubber (1669)

Flex-Lag® Strip Lagging — FRAS Rubber (Variant)

  • See product page for ordering details
  • Format: Strip Lagging
  • Rubber Compound: FRAS
  • Ceramic: Aluminum Oxide (Al₂O₃), 83 HRA
  • Temperature Range: 5°F to 185°F (-15°C to 85°C)
Image Product Details
Belt Positioner™

Belt Positioner™

  • Roller Material: Steel or Exalon (Rubber)
  • Maximum Belt Speed: 1000 FPM (5 M/sec)
  • Temperature Rating: -4°F to 220°F (-20°C to 104°C)
  • Belt Widths: 18" to 96" (450 to 2400 mm)
Image Product Details
PT Max™ Adjustable Top Side

PT Max™ Adjustable Top Side

  • Maximum Belt Speed: 1200 FPM (6 M/sec)
  • Temperature Rating: -40°F to 180°F (-40°C to 82°C)
  • Max Belt Tension: 3000 PIW (SD) / 6000 PIW (HD)
  • Belt Widths: 36" to 84" (900 to 2100 mm)
PT Max™ Stainless Steel Original V-Return Side

PT Max™ SS Original V-Return Side

  • Maximum Belt Speed: 1200 FPM (6 M/sec)
  • Temperature Rating: -40°F to 180°F (-40°C to 82°C)
  • Max Belt Tension: 3000 / 6000 / 10000 PIW (SD/HD/Super)
  • Belt Widths: 24" to 120" (600 to 3000 mm)
PT Smart™

PT Smart™

  • Maximum Belt Speed: 1000 FPM (5 M/sec)
  • Temperature Rating: -40°F to 180°F (-40°C to 71°C)
  • Max Belt Tension: 1600 PIW (280 N/mm)
  • Belt Widths: 18" to 72" (450 to 1800 mm)
PT Smart™ Underground Structure

PT Smart™ Underground Structure

  • Maximum Belt Speed: 1000 FPM (5 M/sec)
  • Temperature Rating: -40°F to 180°F (-40°C to 71°C)
  • Max Belt Tension: 1600 PIW (280 N/mm)
  • Belt Widths: 18" to 72" (450 to 1800 mm)
PTEZ™

PTEZ™

  • Maximum Belt Speed: 1000 FPM (5 M/sec)
  • Temperature Rating: -20°F to 180°F (-30°C to 71°C)
  • Max Belt Tension: 1600 PIW (280 N/mm)
  • Belt Widths: 18" to 48" (450 to 1200 mm)
PTEZ™ Heavy-Duty

PTEZ™ Heavy-Duty

  • Maximum Belt Speed: 1000 FPM (5 M/sec)
  • Temperature Rating: -20°F to 180°F (-30°C to 71°C)
  • Max Belt Tension: 2400 PIW (420 N/mm)
  • Belt Widths: 42" to 84" (1050 to 2100 mm)
Image Product Details
V-Plow

V-Plow

  • Maximum Belt Speed: 1000 FPM (5 M/sec)
  • Temperature Rating: -40°F to 160°F (-40°C to 71°C)
  • Blade Material: UHMWPE 67-D durometer
  • Belt Widths: 18" to 96" (450 to 2400 mm)
MXDP Extreme Duty Diagonal Plow

MXDP Extreme Duty Diagonal Plow

  • Maximum Belt Speed: 2000 FPM (10.0 M/sec)
  • Temperature Rating: -20°F to 180°F (-30°C to 82°C)
  • Blade Material: Polyurethane
  • Belt Widths: 48" to 120" (1200 to 3000 mm)
RDP1 Diagonal Plow

RDP1 Diagonal Plow

  • Maximum Belt Speed: 700 FPM (3.5 M/sec)
  • Temperature Rating: -40°F to 160°F (-40°C to 71°C)
  • Blade Material: UHMWPE 67-D durometer
  • Belt Widths: 18" to 84" (450 to 2100 mm)
Image Product Details
EZP1 Precleaner

EZP1 Precleaner

  • Maximum Belt Speed: 700 FPM (3.5 M/sec)
  • Temperature Rating: -30°F to 180°F (-35°C to 82°C)
  • Blade Material: Polyurethane (ConShear)
  • Belt Widths: 12" to 72" (300 to 1800 mm)
EZP-LS Limited Space Precleaner

EZP-LS Limited Space Precleaner

  • Maximum Belt Speed: 500 FPM (2.5 M/sec)
  • Temperature Rating: -30°F to 180°F (-35°C to 82°C)
  • Blade Material: Polyurethane (ConShear LS)
  • Belt Widths: 12" to 60" (300 to 1500 mm)
H-Type® with V-Tips

H-Type® with V-Tips Precleaner

  • Maximum Belt Speed: 1000 FPM (5 M/sec)
  • Temperature Rating: -30°F to 180°F (-35°C to 82°C)
  • Blade Material: Long Life Tungsten Carbide
  • Belt Widths: 18" to 72" (450 to 1800 mm)
MHCP Precleaner

MHCP Precleaner

  • Maximum Belt Speed: 1200 FPM (6 M/sec)
  • Temperature Rating: -30°F to 180°F (-35°C to 82°C)
  • Blade Material: Polyurethane 90 Durometer (segmented cartridge)
  • Belt Widths: 24" to 96" (600 to 2400 mm)
MHP Heavy-Duty Precleaner

MHP Heavy-Duty Precleaner

  • Maximum Belt Speed: 1500 FPM (7.5 M/sec)
  • Blade Material: MegaShear™ Solid Urethane
  • Pulley Diameter: 20" to 84" (500 to 2100 mm)
  • Belt Widths: 24" to 96" (600 to 2400 mm)
Image Product Details
Belt-Driven Brush Cleaner

Belt-Driven Brush Cleaner

  • Maximum Belt Speed: 700 FPM (3.5 M/sec)
  • Temperature Rating: -20°F to 180°F (-30°C to 82°C)
  • Bristle Length: 3-1/4" (83 mm)
  • Belt Widths: 24" to 72" (600 to 1800 mm)
Wash Box

Wash Box

  • Maximum Belt Speed: 1500 FPM (7.6 M/sec)
  • Temperature Rating: 30°F to 180°F (-35°C to 82°C)
  • Material: Galvanized or Stainless Steel
  • Belt Widths: 24" to 96" (600 to 2400 mm)
Image Product Details
Slider Beds

Slider Beds

  • Adjustable Trough Angle: 20°, 35°, 45°
  • Impact Energy: Up to 200 lb-ft (25 kg-m)
  • Belt Widths: 24" to 72" (600 to 1800mm)
Impact Beds

Impact Beds

  • Adjustable Trough Angle: 20°, 35°, 45°
  • Impact Energy: Up to 750 lb-ft (100 kg-m)
  • Belt Widths: 24" to 72" (600 to 1800 mm)
Modular Impact Beds

Modular Impact Beds

  • Adjustable Trough Angle: 20°, 35°, 45°
  • Impact Energy: Up to 1500 lb-ft (200kg-m)
  • Belt Widths: 24" to 72" (600 to 1800mm)
DRX 200 Impact Beds

DRX™ 200 Impact Beds

  • Available Trough Angles: 20°, 35°
  • Impact Energy: Up to 200 lb-ft (25 kg-m)
  • Belt Widths: 24" to 72" (600 to 1800 mm)
DRX 750 Impact Beds

DRX™ 750 Impact Beds

  • Available Trough Angles: 20°, 35°
  • Impact Energy: Up to 750 lb-ft (100 kg-m)
  • Belt Widths: 24" to 72" (600 to 1800 mm)
DRX 1500 Impact Beds

DRX™ 1500 Impact Beds

  • Available Trough Angles: 20°, 35°
  • Impact Energy: Up to 1500 lb-ft (200 kg-m)
  • Belt Widths: 24" to 72" (600 to 1800 mm)
DRX 3000 Impact Beds

DRX™ 3000 Impact Beds

  • Available Trough Angles: 20°, 35°
  • Impact Energy: Up to 3000 lb-ft (400 kg-m)
  • Belt Widths: 36" to 96" (900 to 2400 mm)
DRX 4500 Impact Beds

DRX™ 4500 Impact Beds

  • Available Trough Angles: 20°, 35°
  • Impact Energy: Up to 4500 lb-ft (600 kg-m)
  • Belt Widths: 36" to 96" (1050 to 2400 mm)
